摘要适用范围：车型 164、209、211、216、219、221、251，带电视组 合协调器 / 代码 863，截至代码 809， 车型 230，带电视组合谐调器 / 代码 863 ...
群辉宜修车依据LI82.85-P-052445重新编排的阅读图：按适用范围、投诉、原因和补救顺序核对，原通告完整页面随文保留。

本篇按原通告的适用范围、投诉、原因和补救顺序重新编排，便于维修时快速定位信息；具体数值、零件和操作要求可在文末保留的原始页面中逐项核对。

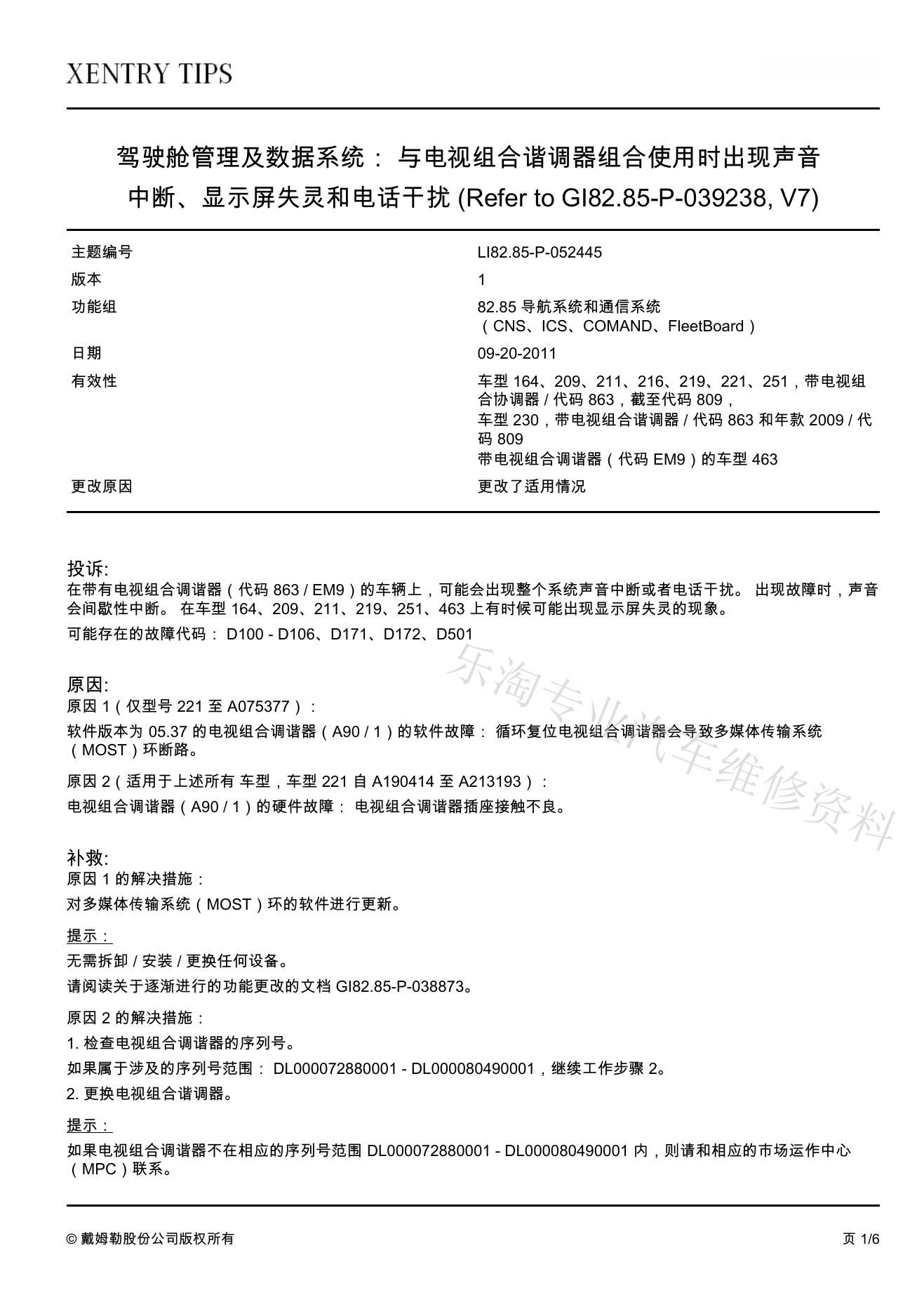

通告编号LI82.85-P-052445，版本1
功能组82.85 导航系统和通信系统 （CNS、ICS、COMAND、FleetBoard）
日期2011-09-20
适用范围车型 164、209、211、216、219、221、251，带电视组 合协调器 / 代码 863，截至代码 809， 车型 230，带电视组合谐调器 / 代码 863 和年款 2009 / 代 码 809 带电视组合调谐器（代码 EM9）的车型 463

一、故障现象与投诉条件

障时，声音

会间歇性中断。 在车型 164、209、211、219、251、463 上有时候可能出现显示屏失灵的现象。

障代码： D100 - D106、D171、D172、D501

二、原通告列出的可能原因

型号 221 至 A075377）：

障： 循环复位电视组合调谐器会导致多媒体传输系统

（MOST）环断路。

原因 2（适用于上述所有 车型，车型 221 自 A190414 至 A213193）：

障： 电视组合调谐器插座接触不良。

三、检查与补救步骤

原因 1 的解决措施：

对多媒体传输系统（MOST）环的软件进行更新。

提示：

/ 更换任何设备。

原因 2 的解决措施：

1. 检查电视组合调谐器的序列号。

如果属于涉及的序列号范围： DL000072880001 - DL000080490001，继续工作步骤 2。

2. 更换电视组合谐调器。

提示：

，则请和相应的市场运作中心

（MPC）联系。

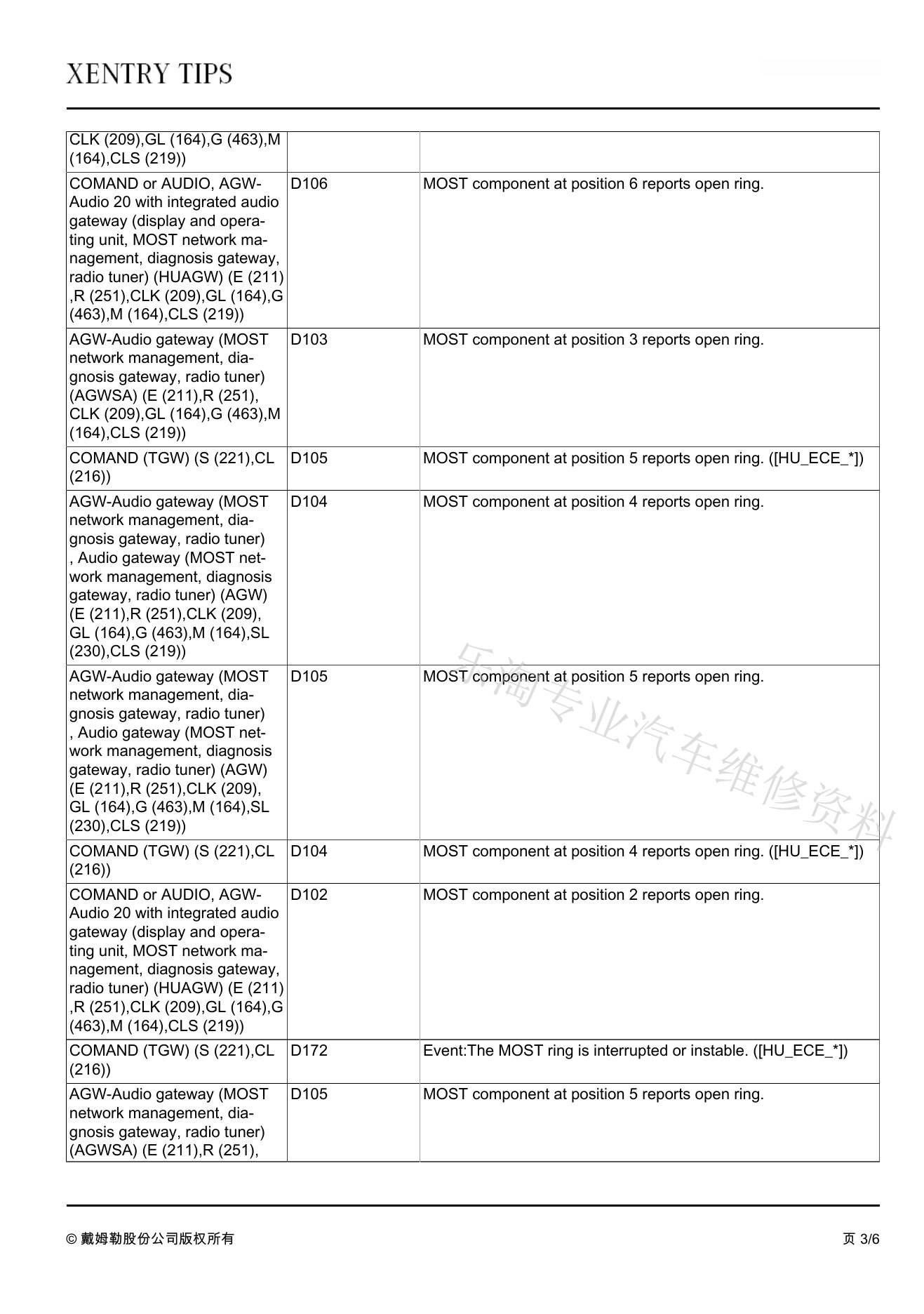

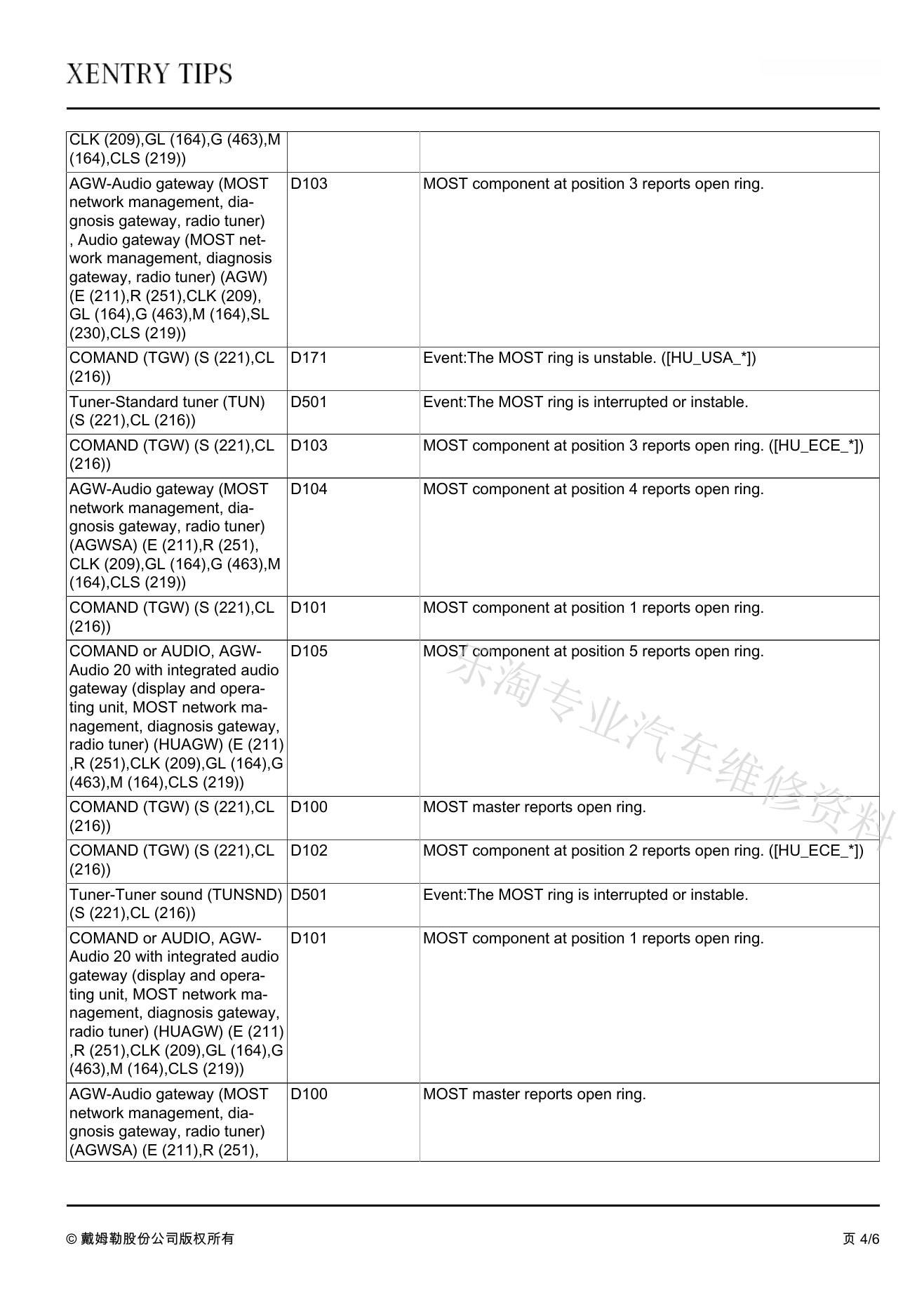

四、控制单元与故障代码

障文本

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D102 MOST component at position 2 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D100 MOST master reports open ring.

COMAND (TGW) (S (221),CL

(216))

D106 MOST component at position 6 reports open ring. ([HU_ECE_*])

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D104 MOST component at position 4 reports open ring.

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D103 MOST component at position 3 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D102 MOST component at position 2 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

D101 MOST component at position 1 reports open ring.

CLK (209),GL (164),G (463),M

(164),CLS (219))

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D106 MOST component at position 6 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D103 MOST component at position 3 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D105 MOST component at position 5 reports open ring. ([HU_ECE_*])

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D104 MOST component at position 4 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D105 MOST component at position 5 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D104 MOST component at position 4 reports open ring. ([HU_ECE_*])

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D102 MOST component at position 2 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D172 Event:The MOST ring is interrupted or instable. ([HU_ECE_*])

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

D105 MOST component at position 5 reports open ring.

CLK (209),GL (164),G (463),M

(164),CLS (219))

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D103 MOST component at position 3 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D171 Event:The MOST ring is unstable. ([HU_USA_*])

Tuner-Standard tuner (TUN)

(S (221),CL (216))

D501 Event:The MOST ring is interrupted or instable.

COMAND (TGW) (S (221),CL

(216))

D103 MOST component at position 3 reports open ring. ([HU_ECE_*])

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D104 MOST component at position 4 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D101 MOST component at position 1 reports open ring.

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D105 MOST component at position 5 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D100 MOST master reports open ring.

COMAND (TGW) (S (221),CL

(216))

D102 MOST component at position 2 reports open ring. ([HU_ECE_*])

Tuner-Tuner sound (TUNSND)

(S (221),CL (216))

D501 Event:The MOST ring is interrupted or instable.

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D101 MOST component at position 1 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

D100 MOST master reports open ring.

CLK (209),GL (164),G (463),M

(164),CLS (219))

COMAND (TGW) (S (221),CL

(216))

D171 Event:The MOST ring is unstable. ([HU_ECE_*])

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D100 MOST master reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D101 MOST component at position 1 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D106 MOST component at position 6 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D106 MOST component at position 6 reports open ring.

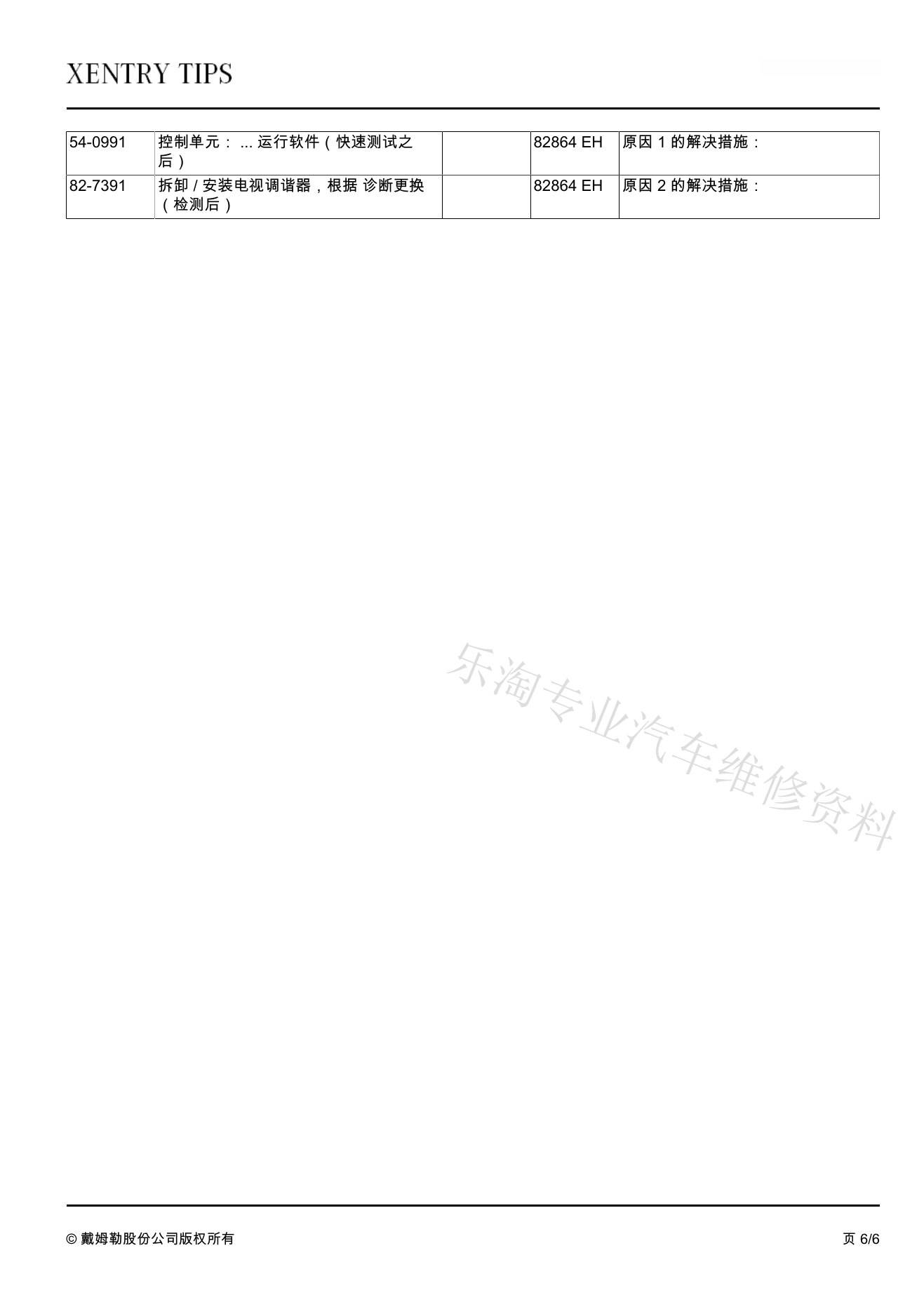

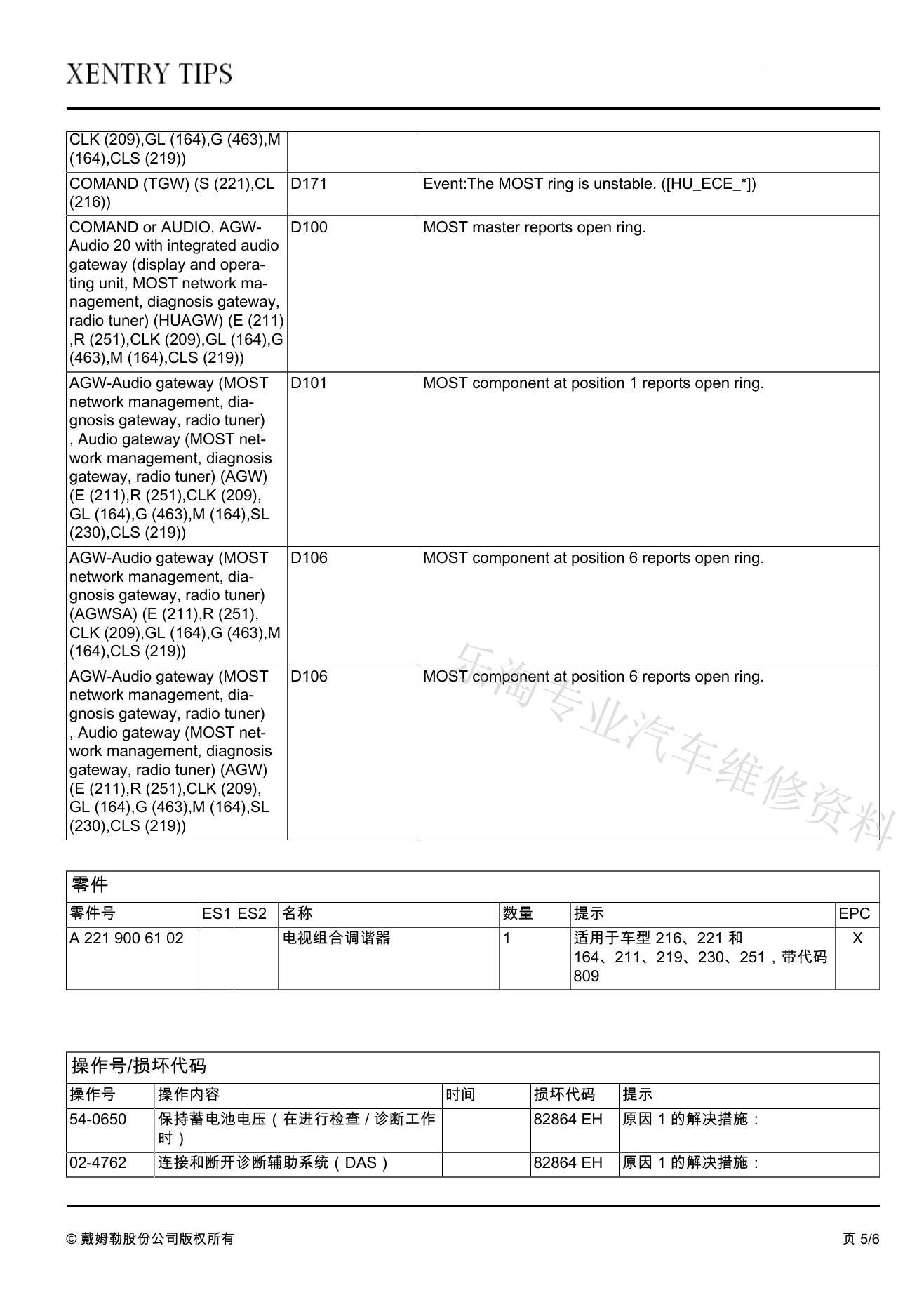

五、零件、操作与WIS参考

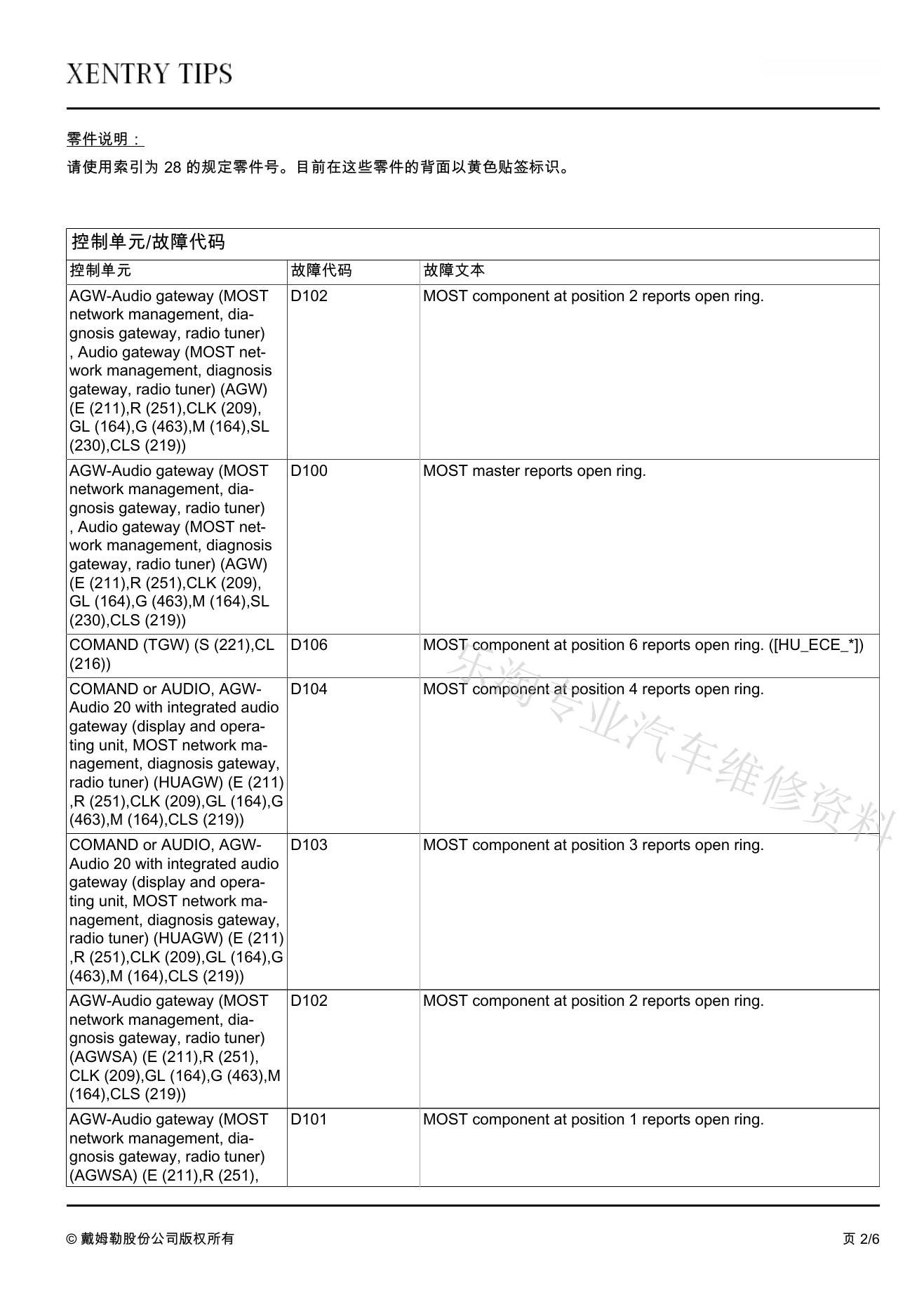

零件信息

说明：

请使用索引为 28 的规定零件号。目前在这些零件的背面以黄色贴签标识。

障代码

障文本

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D102 MOST component at position 2 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D100 MOST master reports open ring.

COMAND (TGW) (S (221),CL

(216))

D106 MOST component at position 6 reports open ring. ([HU_ECE_*])

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D104 MOST component at position 4 reports open ring.

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D103 MOST component at position 3 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D102 MOST component at position 2 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

D101 MOST component at position 1 reports open ring.

CLK (209),GL (164),G (463),M

(164),CLS (219))

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D106 MOST component at position 6 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D103 MOST component at position 3 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D105 MOST component at position 5 reports open ring. ([HU_ECE_*])

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D104 MOST component at position 4 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D105 MOST component at position 5 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D104 MOST component at position 4 reports open ring. ([HU_ECE_*])

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D102 MOST component at position 2 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D172 Event:The MOST ring is interrupted or instable. ([HU_ECE_*])

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

D105 MOST component at position 5 reports open ring.

CLK (209),GL (164),G (463),M

(164),CLS (219))

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D103 MOST component at position 3 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D171 Event:The MOST ring is unstable. ([HU_USA_*])

Tuner-Standard tuner (TUN)

(S (221),CL (216))

D501 Event:The MOST ring is interrupted or instable.

COMAND (TGW) (S (221),CL

(216))

D103 MOST component at position 3 reports open ring. ([HU_ECE_*])

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D104 MOST component at position 4 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D101 MOST component at position 1 reports open ring.

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D105 MOST component at position 5 reports open ring.

COMAND (TGW) (S (221),CL

(216))

D100 MOST master reports open ring.

COMAND (TGW) (S (221),CL

(216))

D102 MOST component at position 2 reports open ring. ([HU_ECE_*])

Tuner-Tuner sound (TUNSND)

(S (221),CL (216))

D501 Event:The MOST ring is interrupted or instable.

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D101 MOST component at position 1 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

D100 MOST master reports open ring.

CLK (209),GL (164),G (463),M

(164),CLS (219))

COMAND (TGW) (S (221),CL

(216))

D171 Event:The MOST ring is unstable. ([HU_ECE_*])

COMAND or AUDIO, AGW-

Audio 20 with integrated audio

gateway (display and opera-

ting unit, MOST network ma-

nagement, diagnosis gateway,

radio tuner) (HUAGW) (E (211)

,R (251),CLK (209),GL (164),G

(463),M (164),CLS (219))

D100 MOST master reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D101 MOST component at position 1 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

(AGWSA) (E (211),R (251),

CLK (209),GL (164),G (463),M

(164),CLS (219))

D106 MOST component at position 6 reports open ring.

AGW-Audio gateway (MOST

network management, dia-

gnosis gateway, radio tuner)

, Audio gateway (MOST net-

work management, diagnosis

gateway, radio tuner) (AGW)

(E (211),R (251),CLK (209),

GL (164),G (463),M (164),SL

(230),CLS (219))

D106 MOST component at position 6 reports open ring.

零件

零件号 ES1 ES2 名称 数量 提示 EPC

A 221 900 61 02 电视组合调谐器 1 适用于车型 216、221 和

164、211、219、230、251，带代码

809

X

操作号与损坏代码

容 时间 损坏代码 提示

54-0650 保持蓄电池电压（在进行检查 / 诊断工作

时）

82864 EH 原因 1 的解决措施：

助系统（DAS） 82864 EH 原因 1 的解决措施：

后）

82864 EH 原因 1 的解决措施：

电视调谐器，根据 诊断更换

（检测后）

82864 EH 原因 2 的解决措施：

6、原始TIPS通告页面

以下完整保留6页原通告。若页面提到的图片、声音或其他附件没有包含在当前PDF中，本文不自行补画或代替附件内容。

LI82.85-P-052445原通告第1页：投诉与适用范围、可能原因、补救步骤、故障代码。
LI82.85-P-052445原通告第2页：故障代码、零件信息。
LI82.85-P-052445原通告第3页：通告内容续页。
LI82.85-P-052445原通告第4页：通告内容续页。
LI82.85-P-052445原通告第5页：可能原因、零件信息、操作与损坏代码。
LI82.85-P-052445原通告第6页：可能原因。

7、适用边界

本案例只覆盖上述适用范围和通告所述故障情形。维修前应核对VIN、生产日期、发动机或控制单元版本及当前故障记录；现象或检查结果不一致时，应继续按对应车辆的Xentry引导测试和WIS流程诊断。

本文依据奔驰相关技术资料进行归纳与重新编排，文中技术示意图均由群辉宜修车重新绘制，原通告页面作为资料对照保留。不同车型、年款及配置可能存在差异，具体参数与维修步骤请以对应车辆的最新厂家维修文件、诊断仪提示及实车测量结果为准。

我的微信
微信扫一扫
weinxin
fengye599
微信号已复制
我的微信公众号
微信扫一扫
weinxin
我的公众号
公众号已复制

肖师傅
  • 本文由 肖师傅 发表于2026年8月10日 22:38:44
  • 转载请务必保留本文链接：https://www.qhyxc.com/archives/597691
  • 82.85 导航系统和通信系统 （CNS、ICS、COMAND、FleetBoard）
  • LI82.85-P-052445
  • XENTRY TIPS
  • 奔驰

发表评论
